Door Systems · Medium-narrow sliding door
35X48 Medium-Narrow Series Aluminium Sliding Door
The middle tier of the sliding range: a frame drawn thicker than the 35X16, more glass, eight finishes.
35X48 MEDIUM NARROW SERIES SLIDING DOOR · application scenes
The middle of the sliding range
The 35X48 is the medium-narrow tier of our sliding doors, sitting between the 35X16 minimalism line and the 40 new-minimalism line. The catalogue draws its frame and sash thicker than the 35X16, which keeps the sight-line slim while the profile carries a wider glass field and a quieter line in the room. For projects that find the 35X16 too fine and the heavy 50 line too solid, this is the middle ground.
Everything here comes from the production catalogue: the section drawings, the eight finishes, the hardware set. The dimensional pack and hardware layout are quoted against the opening.
Key features
Four things it brings to the opening
Specification
The numbers, as published.
Values below are the published specification of the 35X48 Medium-Narrow Series Sliding Door. The complete dimensional and hardware-layout pack (section drawings, roller set, finish cards) is supplied with the quotation.
- Opening
- Horizontal slide, medium-narrow sash
- Profile series
- 35X48 medium-narrow, per catalogue section drawings
- Aluminium
- 6063-T5 primary aluminium
- Corner joinery
- 45° mitered joints
- Glass (standard)
- Automotive-grade tempered, sound and thermal rated
- Track
- Stainless-steel rail, wear- and corrosion-resistant
- Sash insert options
- Clear glass · grille bars · decorative inlays
- Standard finishes
- Jazz black · jazz glazed white · porcelain silver grey · Brazilian pear wood · fluorocarbon grey · fluorocarbon metal coffee · champagne gold · tech wood
- Dimensional pack
- Supplied with quotation
Gallery
More views of the series
Configurations
Three ways to build the opening
Details
Close-up views
Colours
Standard finishes
- Jazz blackext / int
- Jazz glazed whiteext / int
- Porcelain silver greyext / int
- Brazilian pear woodext / int
- Fluorocarbon greyext / int
- Fluorocarbon metal coffeeext / int
- Champagne goldext / int
- Tech woodext / int
Catalogue finish names; RAL equivalents and two-tone exterior/interior combinations are confirmed on request against physical swatches.
Profile & engineering
The frame is 6063-T5 primary aluminium, the same grade as the window and door lines, chosen for hardness, strength and crack resistance. Corners meet at 45 degrees, the join the catalogue cites for a clean face and a solid joint.

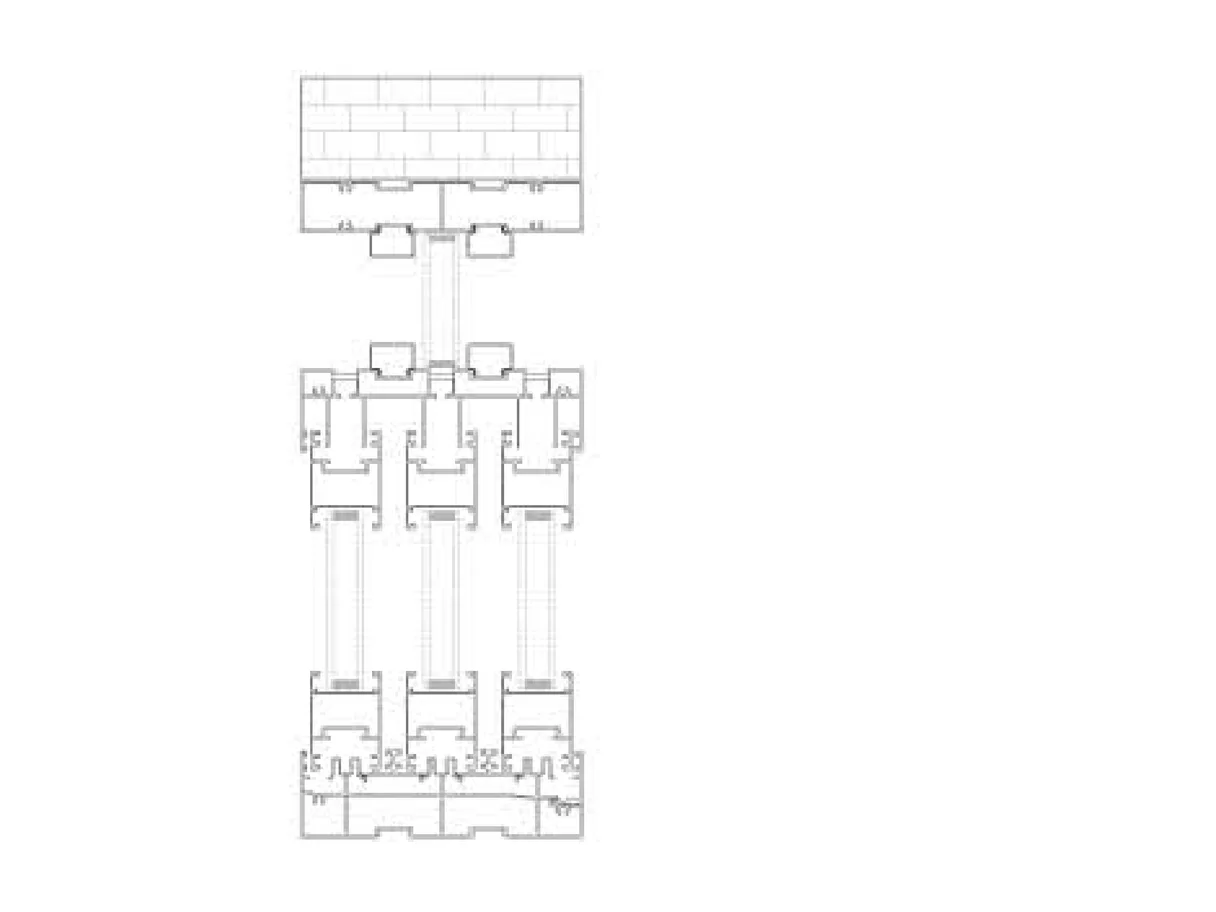

The section drawings show the two-sash and three-sash groups under the wall head, with the track and rollers at the foot of each sash. The rail is stainless steel, which the catalogue calls out for wear and corrosion resistance and strong load capacity, so the sash stays on its line instead of working loose. Automotive-grade tempered glass is standard in every sash, adding sound insulation, thermal comfort and safety. The catalogue also lists grille bars and decorative inlays for the glass, so one frame can go plain or patterned.
Configurations

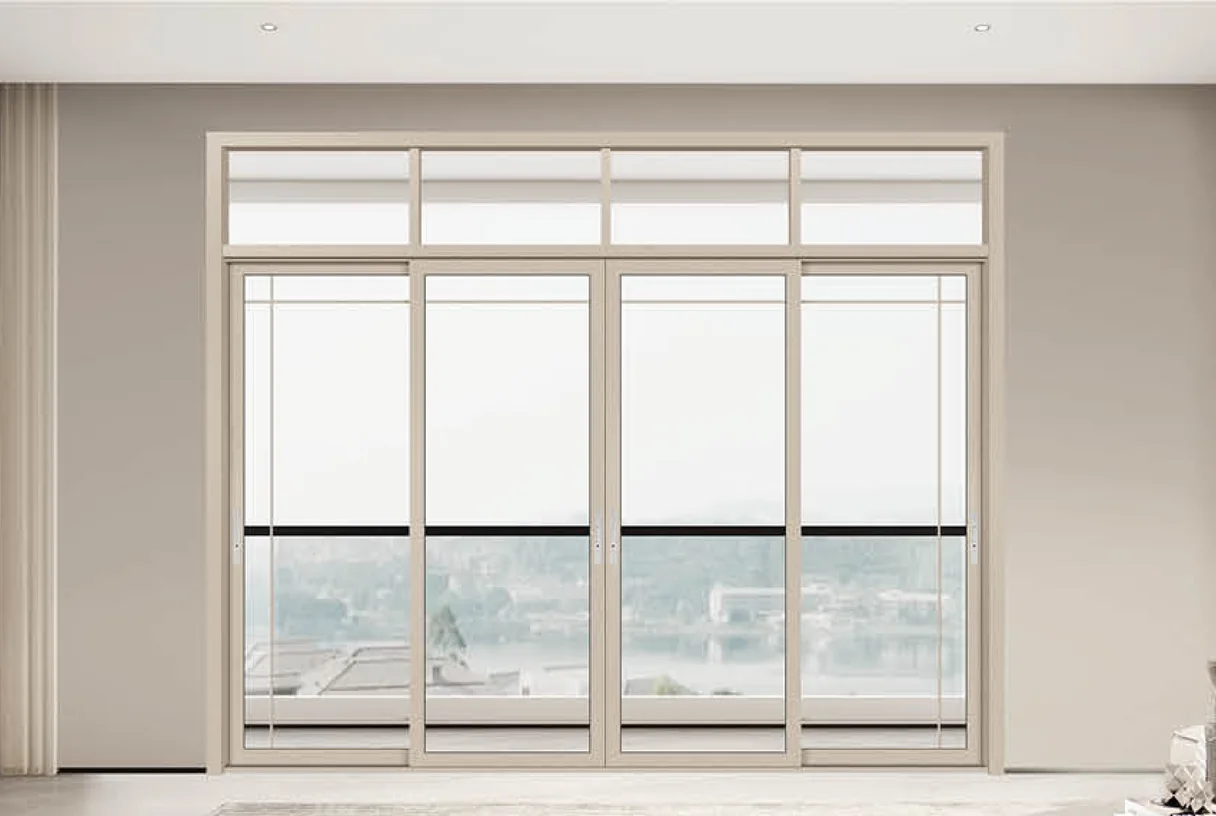

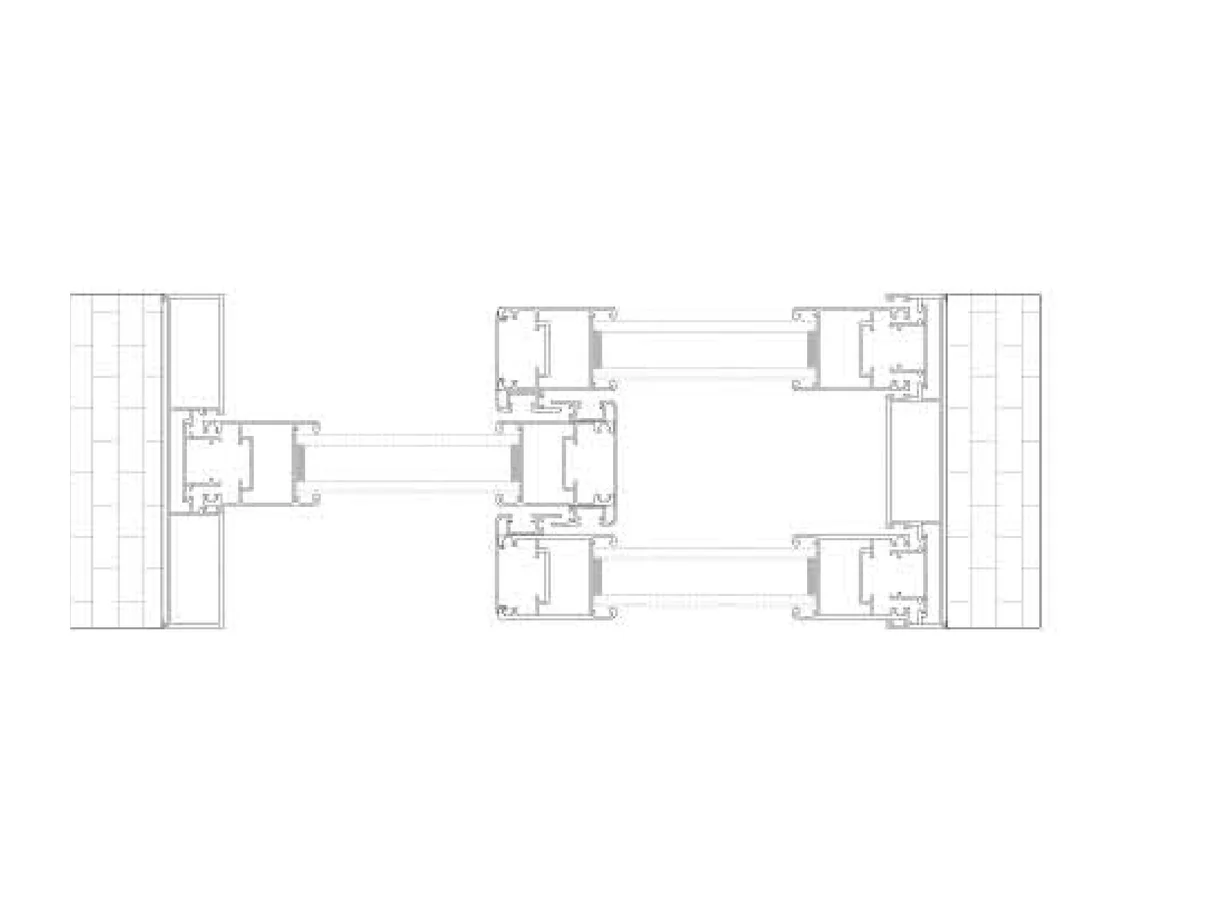

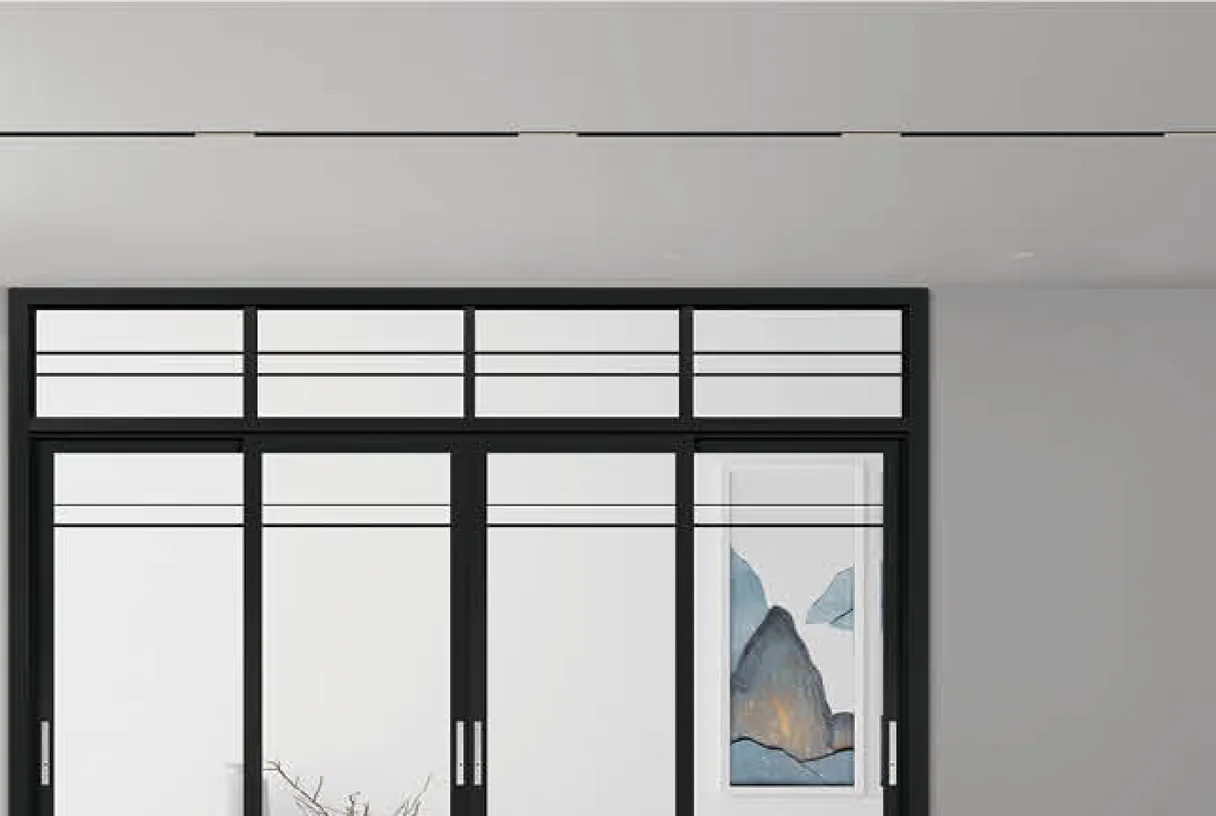

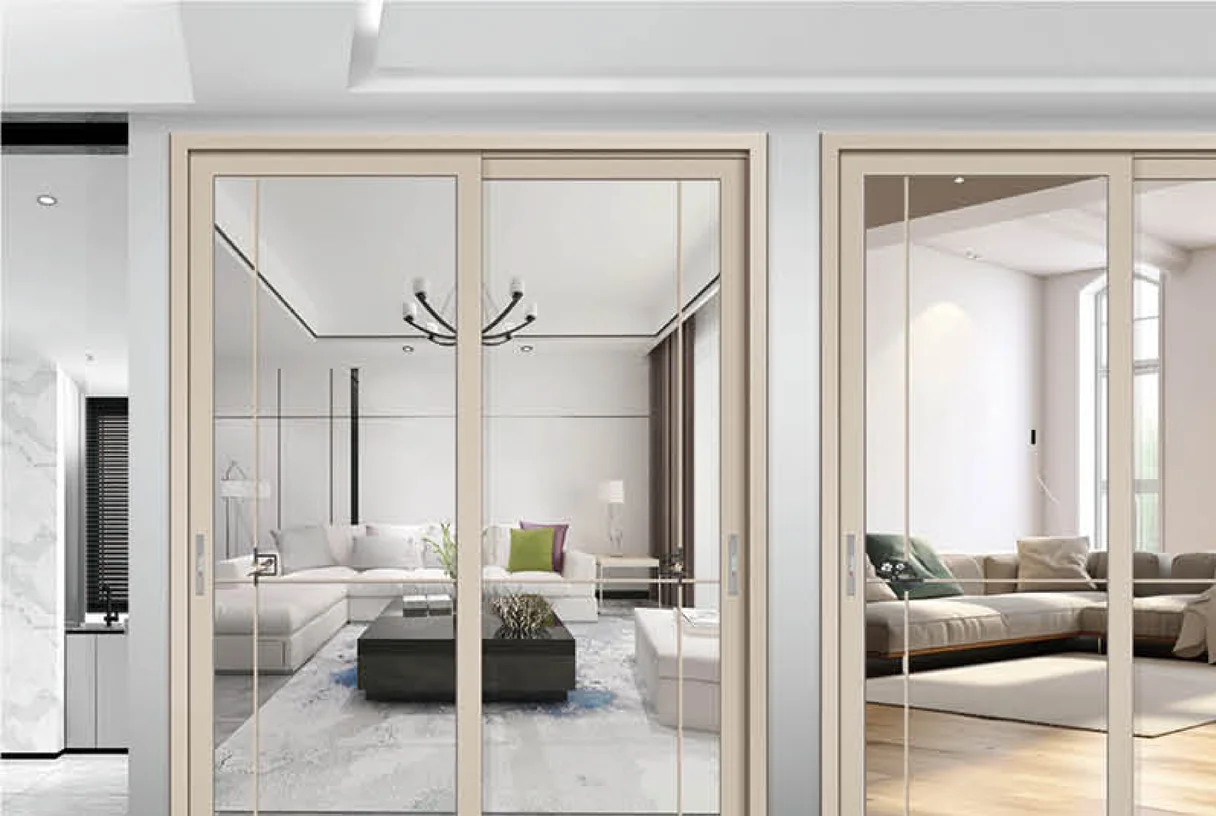

Two-panel is the everyday layout for interior and patio openings. Four-panel with a fixed head light suits wide living-room and bedroom fronts: the transom runs continuous above the moving sashes, as in the hero scene. The wide assembly in the third section drawing covers larger openings across a wall. The catalogue hardware set carries the silver handle, the track section and the roller assembly. Panel widths and glass build-up are quoted against the opening dimensions.
Finishes
Eight catalogue finishes are standard on the 35X48: jazz black, jazz glazed white, porcelain silver grey, Brazilian pear wood, fluorocarbon grey, fluorocarbon metal coffee, champagne gold and tech wood. The wood-grain and metallic options give the series a broader palette than the other sliding lines. RAL equivalents and two-tone combinations are confirmed against physical swatches on request.
OEM & project supply
The 35X48 is supplied on the same OEM basis as the rest of the range: private-label packing, project documentation, export-standard containers. A profile set and a finished test door are available for review before a project commits. Send the opening size, the panel layout and the destination market; the quotation comes back with the full dimensional pack.
Factory-direct
Who is behind the profile
Documentation
Brochure & spec sheetThe full 35m48 brochure (section drawings, roller set, finish cards) is sent with the quotation, in PDF and CAD on request.
Request the brochureMarket versions
This series, specified for your market
Each market page carries the local section beside the published specification: the codes and certification position, the glazing call-out and the container plan for the region.
FAQ
Asked on every 35X48 series project
What is the 35X48 medium-narrow sliding door?
It is the middle tier of our sliding range: a horizontal slide on 6063-T5 primary aluminium, with a frame drawn thicker than the 35X16 minimalism line, a stainless-steel rail and eight catalogue finishes.
How does it compare with the 35X16 and the 40?
The 35X16 is the thinnest sight-line; the 40 adds the tri-synchronous three-sash layout. The 35X48 sits between them with a thicker frame, more finishes and grille or decorative inlays in the same frame.
What glass is standard?
Automotive-grade tempered glass is standard in every sash, with sound insulation and thermal benefit. Grille bars and decorative inlays are catalogue options for the same frame.
Which finishes are standard?
Eight: jazz black, jazz glazed white, porcelain silver grey, Brazilian pear wood, fluorocarbon grey, fluorocarbon metal coffee, champagne gold and tech wood. RAL equivalents are confirmed on request.
What layouts can it do?
Two-panel, four-panel with a fixed head light, and the wide assembly shown in the section drawings. Exact sizes are quoted against the opening.
Can we sample it before ordering?
Yes. A profile set and a finished test door are available on request, with lead time confirmed on the enquiry.
