ALUMINIUM LOUVER AND SHADING PROFILES

The blade that lands between the sun and the glass

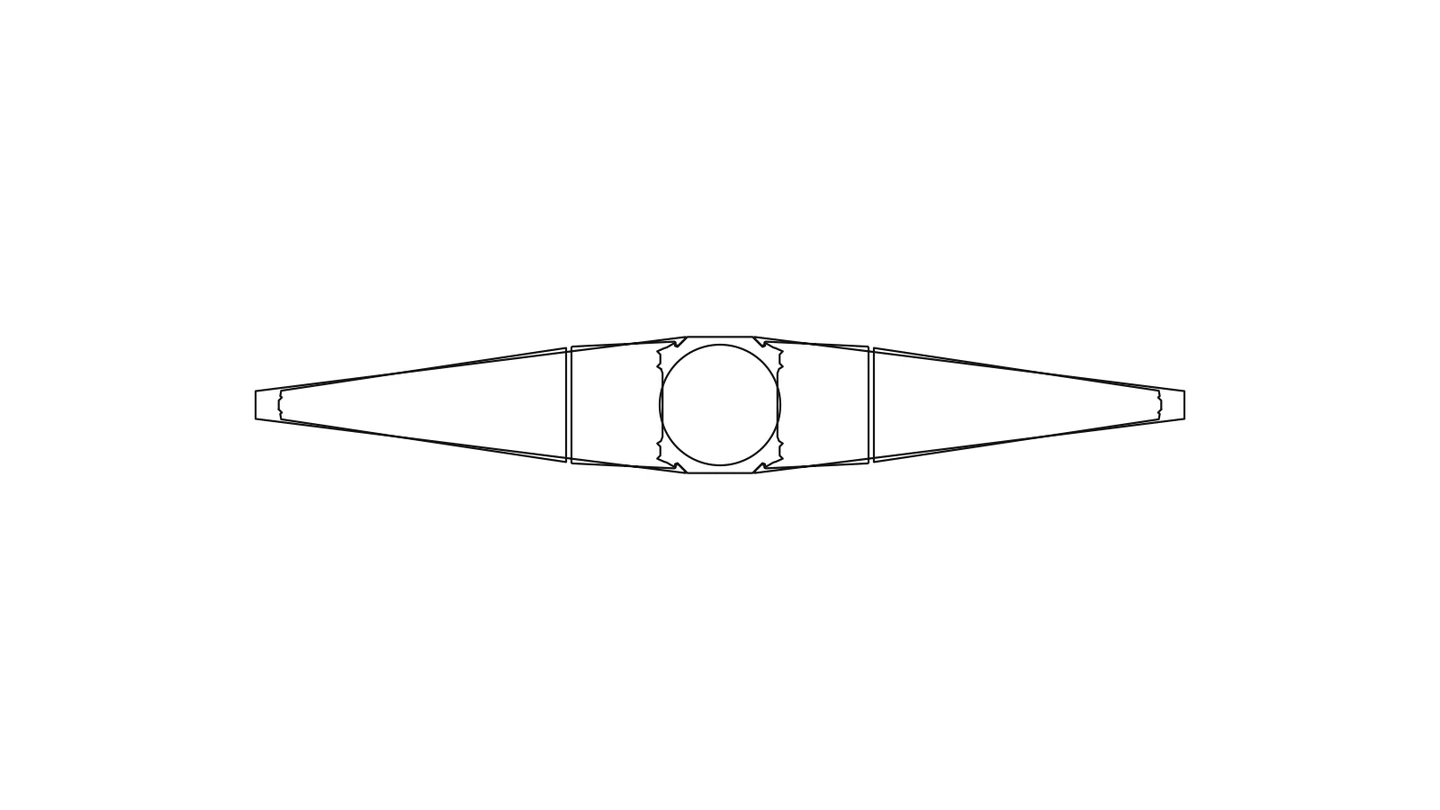

A louver shades the facade because the blade sits between the sun and the pane, and this line is the blade itself in two forms: the spar-shaped section with the twin chamber inside, and the flat blade that carries the round tube. BY134 at 1.1 mm and 0.448 kg per metre is the standard spar blade in the set, and BY536 at 0.8 mm and 0.267 kg per metre is the lightest blade in the line. The blades mount on the curtain wall grid in front of the glass, and the end covers that close each blade are drawn on the same sheet.

0.8 to 6.0 mmBlade wall

10.897 kg/mBY250 heavy blade

70Sections in the line

40 to 500Catalogued blade sizes

Key features

Four things it brings to the facade

01Spar and flat bladesTwo blade forms cover the range: the spar-shaped section with the twin chamber for the structural fin, and the flat blade with the round tube for the light line.

02Walls from 0.8 to 6.0 mmLight blades run at 0.8 to 1.2 mm, the structural fins at 2.0 to 3.8 mm, and the heavy fin sections up to 6.0 mm, so the wall follows the duty at each position.

03Blade and cover as a setThe end cover is drawn with the blade it closes, and the assembly detail shows the fixing position, so the louver line is quoted complete.

04Sizes from 40 to 500The catalogue lists the blade sizes with the wall at each, so the blade is chosen against the module width in the facade drawing.

Specification

The numbers, as published.

Values below are the published specification of the Aluminium Louver and Shading Profiles. The complete dimensional pack and model list is supplied with the quotation.

Blade wall: 0.8 to 6.0 mm aluminium
Spar blade: BY134, 1.1 mm, 0.448 kg/m
Light blade: BY536, 0.8 mm, 0.267 kg/m
Heavy blade: BY250, 3.8 mm, 10.897 kg/m
Heavy fin: AHM85149, 6.0 mm, 6.484 kg/m
End cover: BY192, 2.0 mm, 0.264 kg/m
Line size: 70 sections in the catalogue

Request the full dimensional pack

Gallery

More views of the series

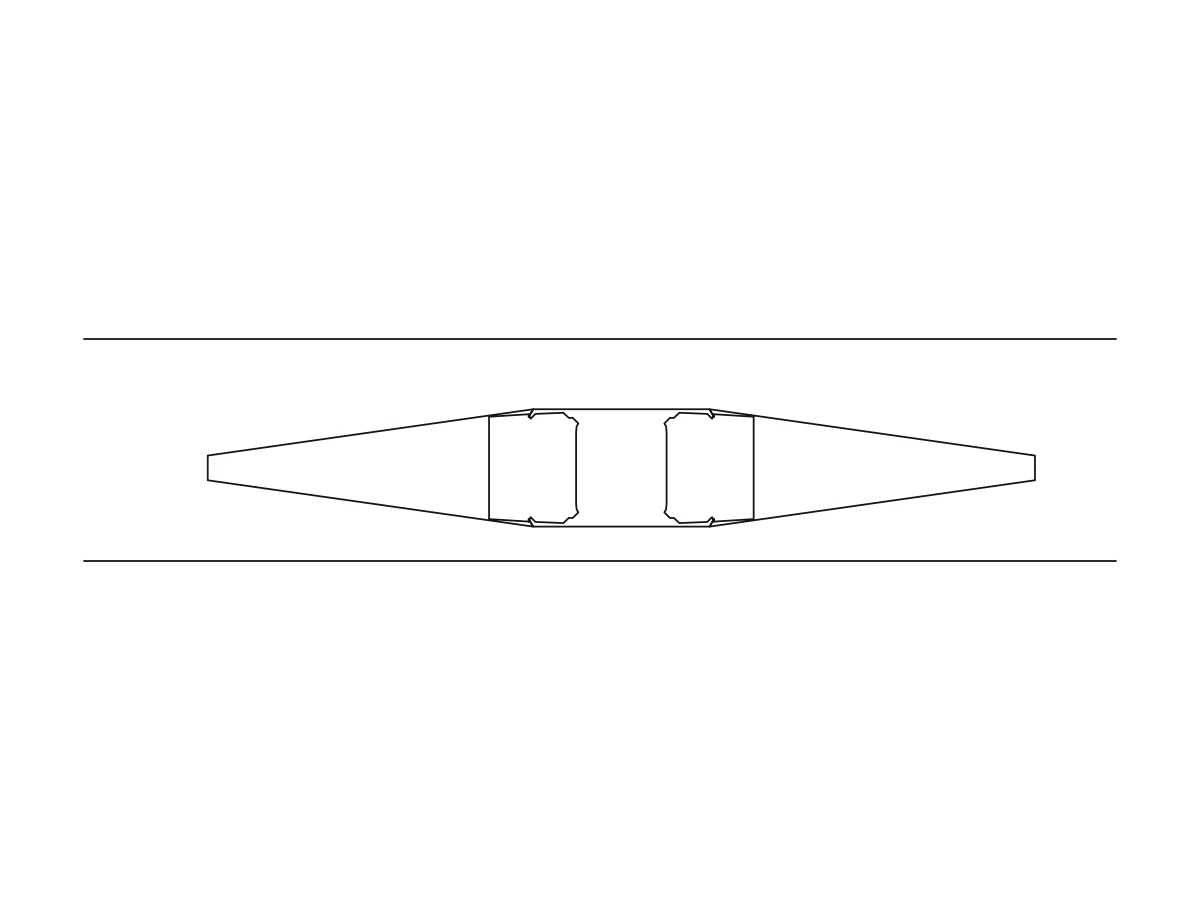

Spar-shaped louver blade section with the twin chamber inside, from the shading catalogue — Spar blade, twin chamber

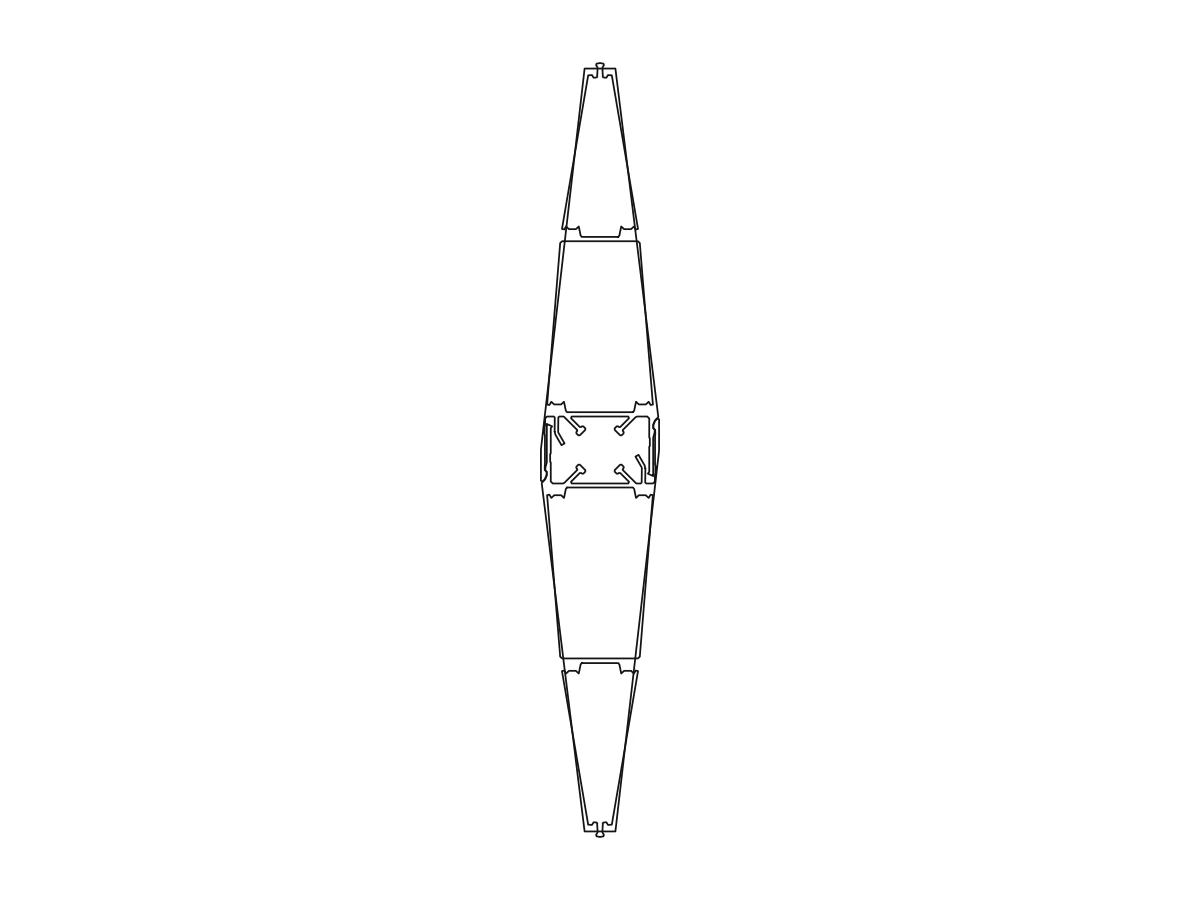

Spar-shaped louver blade section drawn vertical, from the shading catalogue — Spar blade, vertical

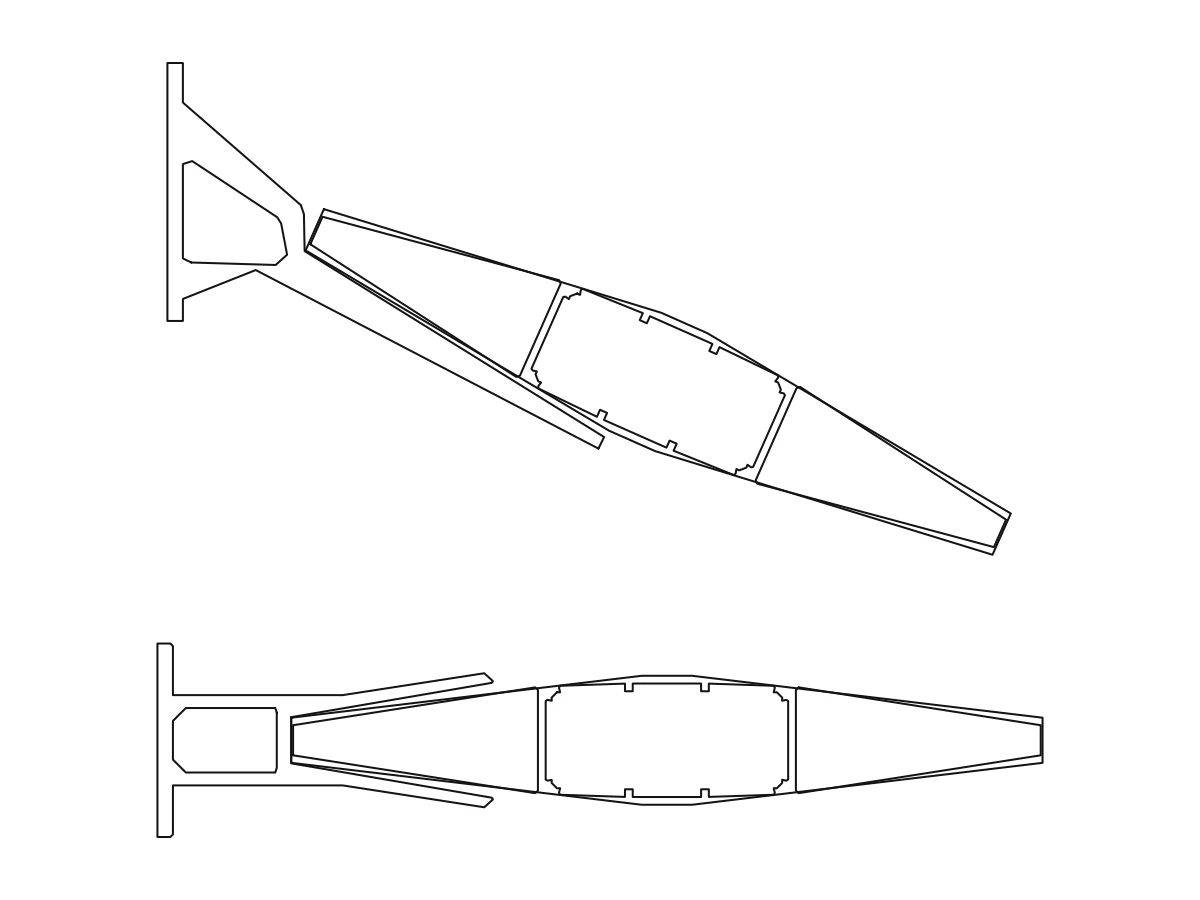

Louver blade with the end cap shown in several views, from the shading catalogue — Blade and end cap, multi-view

Configurations

Three ways to specify the line

Blade formSpar-shaped twin-chamber blade or flat blade with the round tube.

Wall0.8 to 6.0 mm across the line, fixed at quotation against the module and the span.

FinishThe facade finish line, with RAL matching where the project needs one colour.

Details

Close-up views

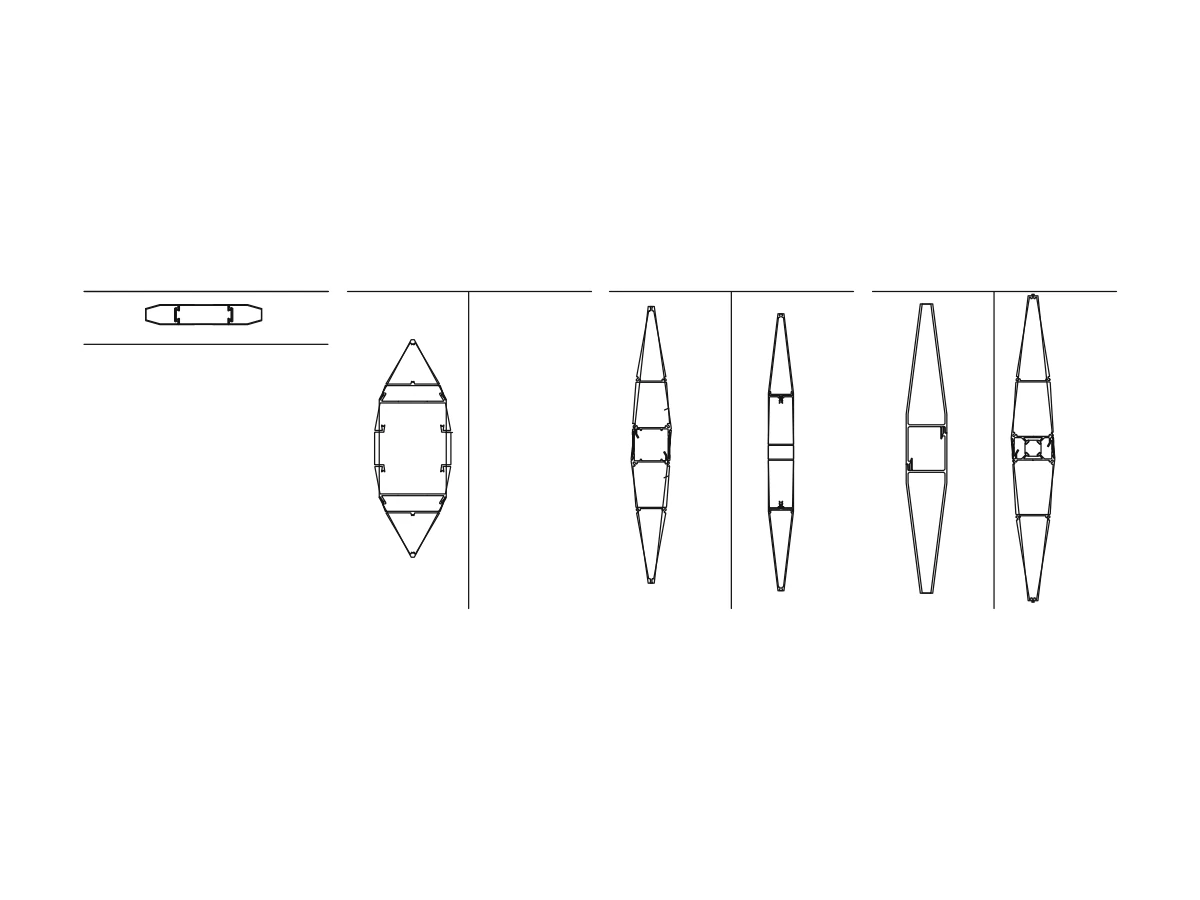

Walls from 0.8 to 6.0 mm

The wall in the blade line follows the duty of the blade. The light blades for the vision zone run at 0.8 to 1.2 mm, BY442 at 1.0 mm and 0.378 kg per metre among them. The structural fins that take the load run at 2.0 to 3.8 mm, with BY250 at 3.8 mm and 10.897 kg per metre the heaviest section in the set. At the top of the range, AHM85149 carries a 6.0 mm wall at 6.484 kg per metre for the heavy fin position. The catalogue lists blade sizes from 40 to 500 with the wall at each, and the size at each position is fixed at quotation against the module width in the facade drawing.

Blade and cover as a set

Each blade ends in a cover, and the sheet draws the cover with the blade it closes. BY192 at 2.0 mm and 0.264 kg per metre is the cover section, and the assembly detail shows the blade with its end cap in more than one view, so the fixing position is visible on the drawing. The blade, the cover and the fixing are quoted as a set, because a louver line that is half specified ends up with a blade from one shop and a cover from another. The line runs 70 sections in the catalogue, across both blade forms.

Matched to the facade finish

The louver sits in front of the glass, so it reads as part of the facade line, and the finish follows the same rule. The blade takes the same finish as the frame it mounts on, with RAL matching where the project needs one colour across the bay. The enquiry carries the module width, the blade size and the finish, and the reply lists the blade, the wall, the cover and the weight per metre for each position. The dimensional pack ships with the quotation, and a sample blade in the chosen finish can be cut before the production order is placed.

Factory-direct

Who is behind the profile

Louver setBlade and cover together

Since 1997In-house extrusion

Dimensional packShips with quotation

SamplesBefore the order commits

Documentation

Brochure & spec sheet

The full shading brochure (blade sections, size tables, finish cards) is sent with the quotation, in PDF on request.

Request the brochure

FAQ

Asked on every shading project

What blade forms are in the set?

Spar-shaped blades with the twin chamber inside, and flat blades that carry the round tube.

What wall thicknesses does the louver line cover?

From 0.8 mm on the lightest blade to 6.0 mm on the heavy fin sections.

What sizes are listed in the catalogue?

Blade sizes from 40 to 500, with the wall thickness at each size.

Are the end covers included?

Yes, the cover section is drawn with the blades and quoted as a set with them.

Can the louvers match the facade finish?

The blades take the same finish as the frame they mount on, with RAL matching on request.
