50 Heavy-Duty Sliding Door for Africa
The 50 Ultra-Sealed Heavy-Duty Sliding Door is configured here for Africa. The figures below are the published catalogue specification of the series; the market section covers what projects in Africa add to it. Send the opening schedule and the glazing you want, and the quotation comes back with the dimensional pack.
50 Ultra-Sealed Heavy-Duty Sliding Door · Africa
50 Ultra-Sealed Heavy-Duty Sliding Door
The heavy line of the sliding range: narrower frame, wider glass, stainless-steel track. The complete configuration, glass options and finish list are on the door series page.
- Opening
- Horizontal slide, heavy-duty sash
- Profile section
- 50 × 65 mm standard sash · 50 × 100 mm lift sash
- Aluminium
- 6063-T5 primary aluminium
- Corner joinery
- 45° mitered joints
- Glass (standard)
- Automotive-grade tempered, sound and thermal rated
- Track
- Stainless-steel rail, wear- and corrosion-resistant

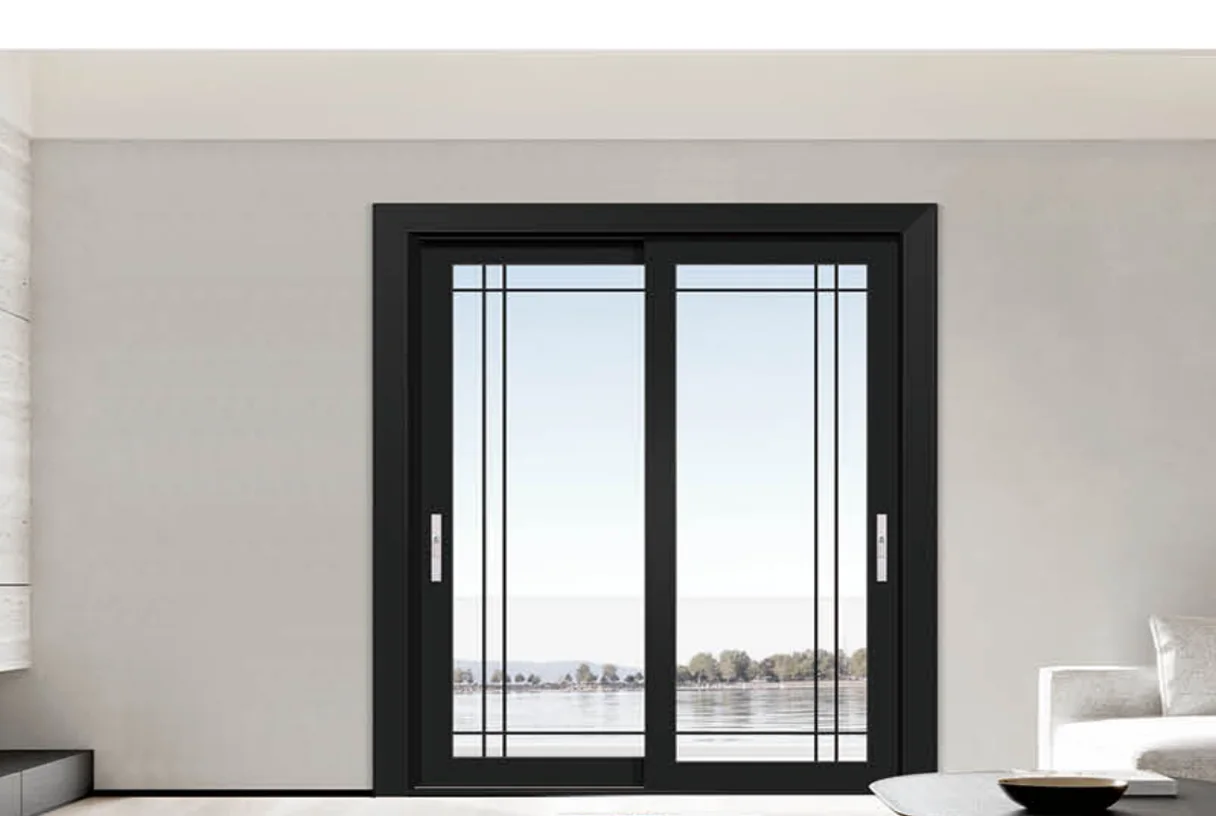

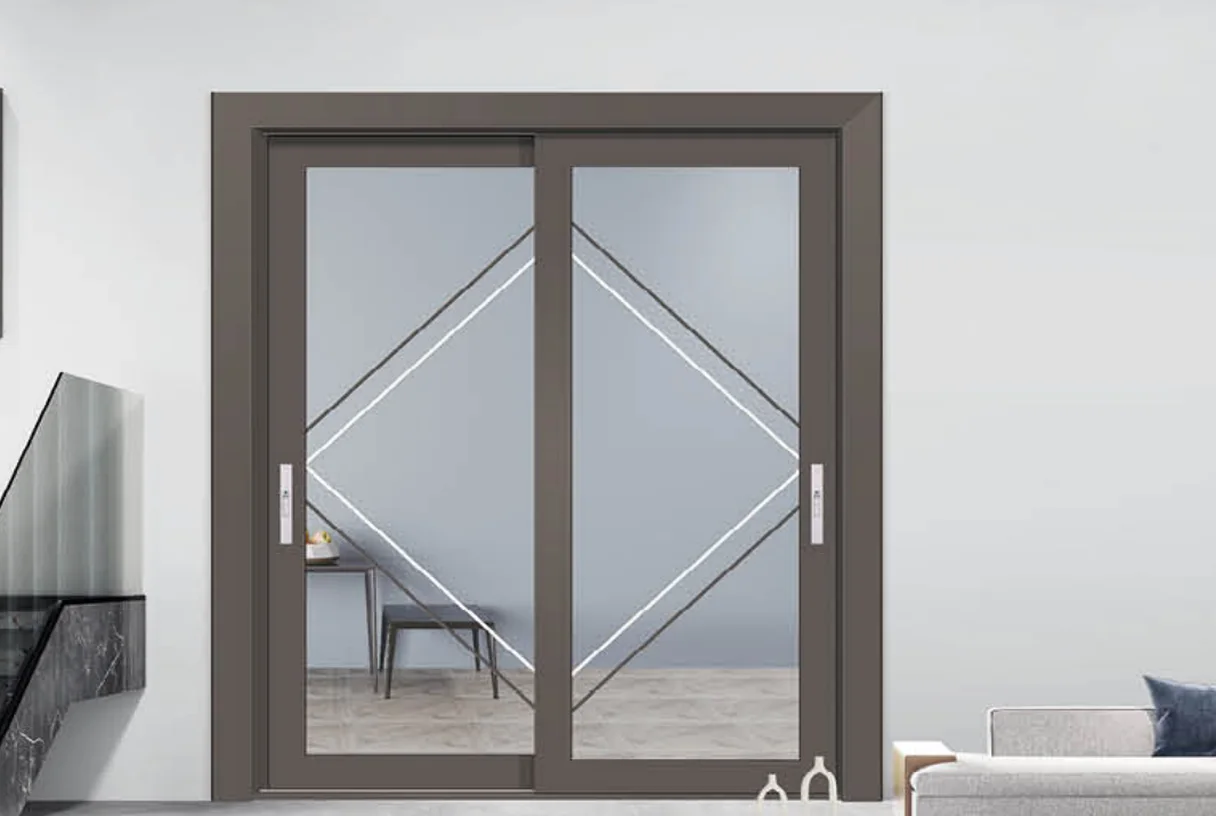

- Sash insert options
- Clear glass · grille bars · decorative panels
- Standard finishes
- Jazz black · jazz moonlight grey · fluorocarbon grey · fluorocarbon metal coffee
- Dimensional pack
- Supplied with quotation
Engineering
Narrower frame, wider glassThe door frame and sash are drawn narrower than the previous sliding lines, so each light carries more glass and less aluminium, and the sight-line thins.
6063-T5 primary aluminiumToughness, strength and crack resistance come from the 6063-T5 primary aluminium the range is extruded in, on the same line as the window series.
45° mitered cornersCorners are joined at 45 degrees, which keeps the outer face clean and the frame line straight across the full opening.
Tempered glass standardAutomotive-grade tempered glass is fitted as standard, adding sound insulation, thermal comfort and safety to the glazed sash.
Specifying for heat and value
African projects are usually specified against two drivers: heat, and the total landed cost of the glazing line. Single-glass build-ups cut weight and freight in the container; insulating units step in where comfort or acoustics are required. Both run on the same frame, so the build-up is a line on the quotation, not a different product.
Wall thickness and finish are the second lever. The 6063-T5 sections in the range are extruded in-house, and the anodised and thermal-transfer finish lines are the standard shortlist.
Full-container loading
The container is the unit of supply: a full box of modules for one phase, packed upright with edge protection, with the loading plan drawn against your opening schedule.
Transit to the port of discharge, and the documentation for clearing, travel with the shipment. Transit times are confirmed per route at quotation.
Projects in Africa
villa · day scene
Two-storey villa, timber eaves
Two-storey villa with deep timber eaves over a stone plinth and pool.
villa · day scene
White villa, black frames
White villa with black window frames, shown from the garden and the entrance.
villa · night scene
Modern villa at night
Modern villa rendered at night: light lines under the eaves and a lit gate front.
FAQ
Frequently asked
Do you ship to West and East Africa?
Yes. Full-container loading is the standard supply unit, and the loading plan for your opening schedule comes with the quotation.
Can we mix single and insulating glass in one container?
Yes. The glazing build-up is specified per opening on the schedule, so one container can carry both configurations; the mix is confirmed in the loading plan.
How heavy is the 50 series sash, and how wide can panels go?
Sash weight and maximum panel width are quoted against the opening and glazing configuration; the dimensional pack for your exact layout is supplied with the quotation.
What glass is standard on the 50 series?
Automotive-grade tempered glass is standard, with sound insulation and thermal benefits. Insulating glass build-ups are quoted per project.
Keep going
Series, market and range
Send your opening schedule
Series, glazing and finish come back as one quotation for Africa, with the full dimensional pack on PDF and CAD on request.
