Market · the United States
Yujing Entrance Door for the United States
The Yujing French & Modern Double Entrance Doors is configured here for the United States. The figures below are the published catalogue specification of the series; the market section covers what projects in the United States add to it. Send the opening schedule and the glazing you want, and the quotation comes back with the dimensional pack.
Yujing French & Modern Double Entrance Doors · the USA
Yujing French & Modern Double Entrance Doors

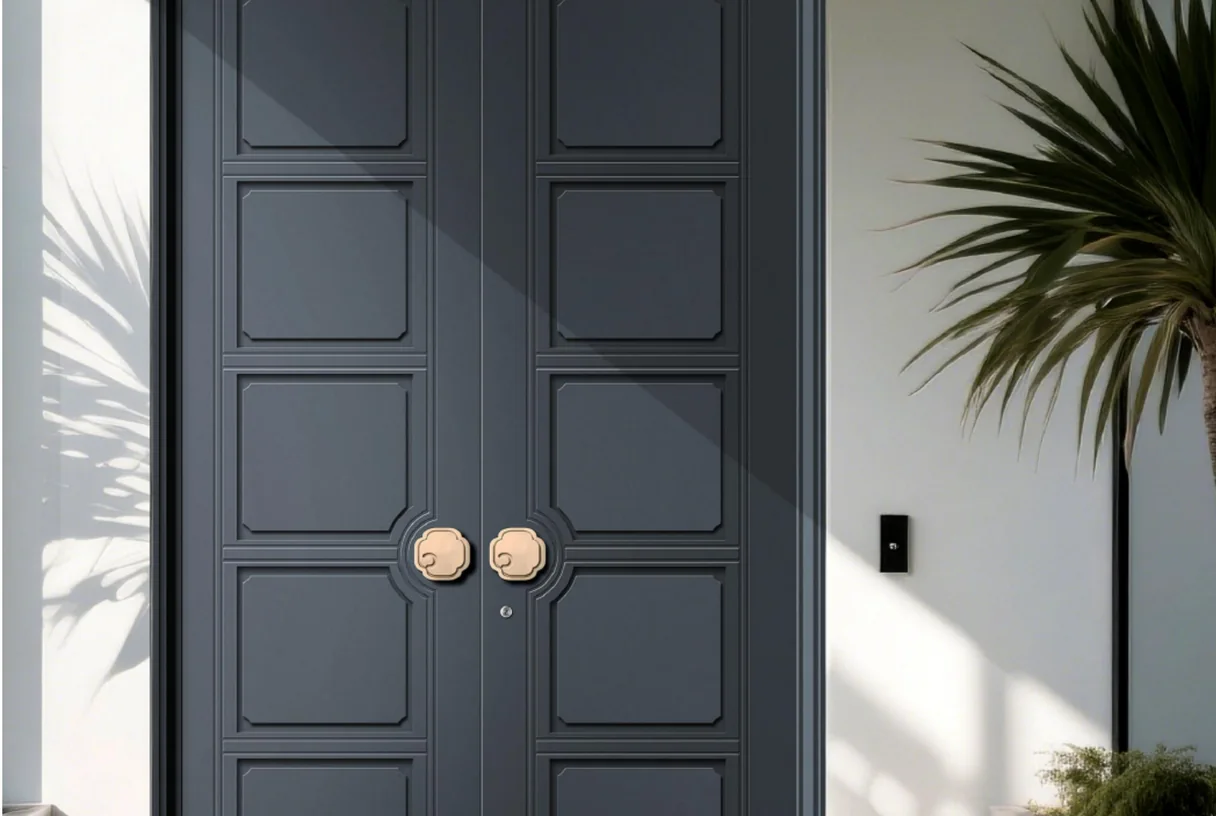

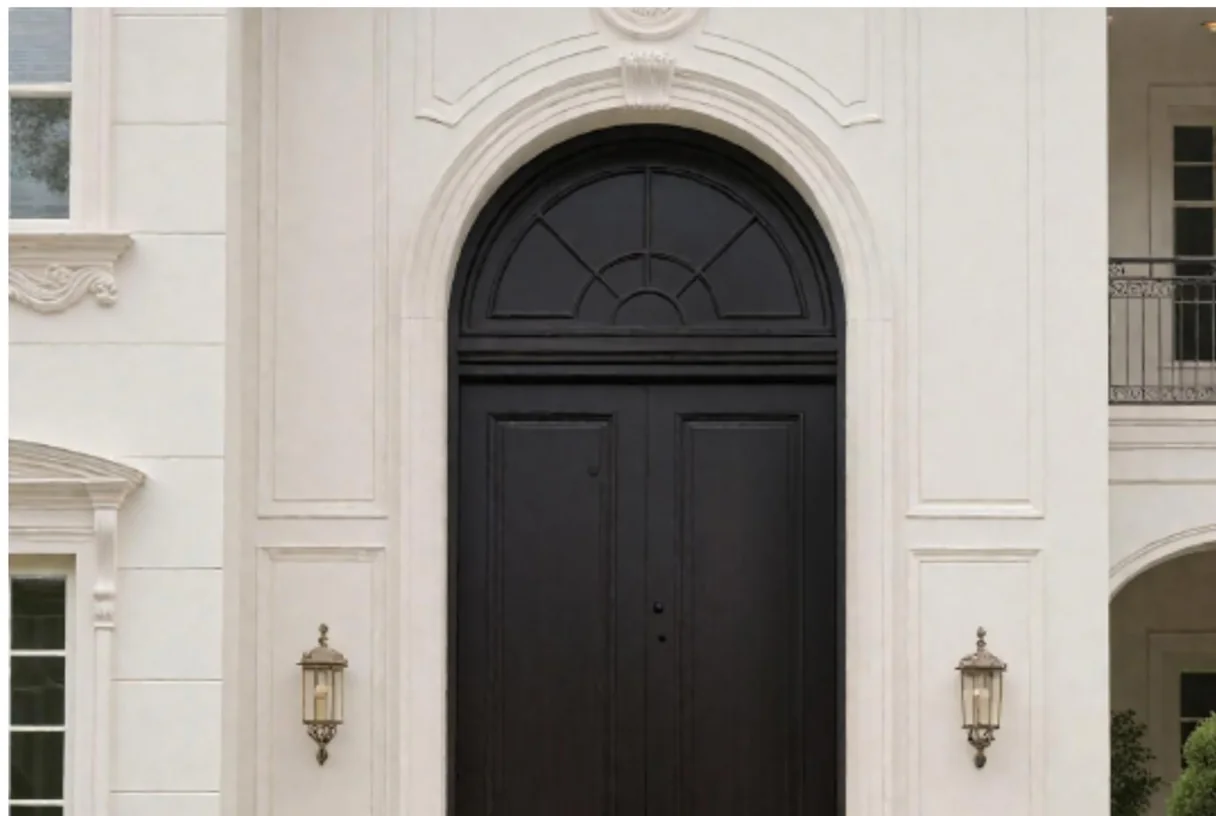

The double-leaf entrance line: a French panelled leaf and a modern flush or grooved leaf, on one sealed swing frame. The complete configuration, glass options and finish list are on the door series page.
- Opening
- Double-leaf swing, French or modern leaf
- Door style
- French panelled leaf · modern flush or grooved leaf
- Frame
- Aluminium with thermal-break profiles
- Structural build
- Aviation-grade aluminium plate · 1.0 mm steel plate · B1 flame-retardant board · PA66 insulation strip · automotive-grade sealing strip · aluminium backboard
- Glazing
- Tempered glass · grille-bar and panelled options
- Sidelights
- Matched fixed sidelights where the wall allows
- Performance (catalogue ratings)
- Sound 5 · thermal 8 · water 8 · air 8 · wind 9
- Hardware
- L8 face lock (palmar-vein option) · N6 fingerprint lock · F3 to F6 embedded locks · H3 horizontal handle
- Finishes
- Confirmed against the catalogue and samples on request
Engineering
French and modern leaf facesThe catalogue prints the series as two families, a French double leaf with raised panels and a modern double leaf with a flush or grooved face, and both run on the same double-swing frame.
Sealed double-leaf assemblyThe pair meets on a central stile and seats on an automotive-grade sealing strip, the part the catalogue ties to its sound, thermal, water and air ratings.
Thermal-break aluminium frameThe leaf is built on an aluminium frame with thermal-break profiles and PA66 insulation strips, the build the catalogue names across the entrance range.
Smart-lock readyThe catalogue hardware pages list the L8 face lock with an optional palmar-vein function, the N6 fingerprint lock and the F3 to F6 embedded locks, together with the H3 horizontal handle.
What US projects require
Glazing rules tighten in the high-velocity hurricane zones: the code requires impact-rated glazing and defined structural performance on the exterior envelope, and most spec writers work from the ASTM and Florida building code framework as the reference point. In practice the glazing build-up, the frame section and the hardware have to be stated on the quotation, line by line, against your zone and wind-borne debris category.
Adam Alux does not hold US test certifications. The bridge is the specification process: send the zone, the debris category and the opening schedule, and the glazing build-up, frame section and hardware layout come back confirmed against that project at quotation, with a finished test unit available before production.
Shipping to US ports
Modules ship in export-standard containers sized around the opening: glazed units travel upright with corner and edge protection for the trans-Pacific line. The loading plan, including modules per container for your mix, comes with the quotation, because it depends on frame depth and glass build-up rather than a fixed table.
Freight and port handling are confirmed per shipment, and transit time is quoted at order. Packing list and conformity documentation travel with the container.
Projects in the United States
villa · day scene
Modern villa, two volumes
A two-volume modern villa in white and dark cladding, with a pool-side elevation.
villa · day scene
Gable villa, stone and brick
Gable-roof villa mixing white render, stone and brick around deep window reveals.
villa · day scene
Single-storey villa, pool terrace
A flat concrete roof with a deep overhang shades full-height sliding doors that open the living space onto a pool terrace.
FAQ
Frequently asked
Do your aluminium windows and doors ship to the USA?
Yes. The range ships to US ports in export-standard containers, and the loading plan for your opening mix is included with the quotation.
How is hurricane-zone glazing handled on a quotation?
The glazing build-up for a designated zone is confirmed line by line against your debris category at quotation. A finished test unit is available before production.
What is the Yujing double entrance door?
It is the double-leaf entrance line of the AURORA range, printed on catalogue pages 063 to 067 as a French panelled leaf and a modern flush or grooved leaf on one double-swing frame.
What performance does the catalogue give?
Five catalogue ratings: sound insulation level 5, thermal insulation level 8, water tightness level 8, air tightness level 8 and wind-pressure resistance level 9, taken as printed for the sealed assembly.
Send your opening schedule
Series, glazing and finish come back as one quotation for the United States, with the full dimensional pack on PDF and CAD on request.
