Market · Australia
Yingfei Entrance Door for Australia
The Yingfei Offset-Hinge Cast-Aluminium Entrance Door is configured here for Australia. The figures below are the published catalogue specification of the series; the market section covers what projects in Australia add to it. Send the opening schedule and the glazing you want, and the quotation comes back with the dimensional pack.
Yingfei Offset-Hinge Cast-Aluminium Entrance Door · Australia

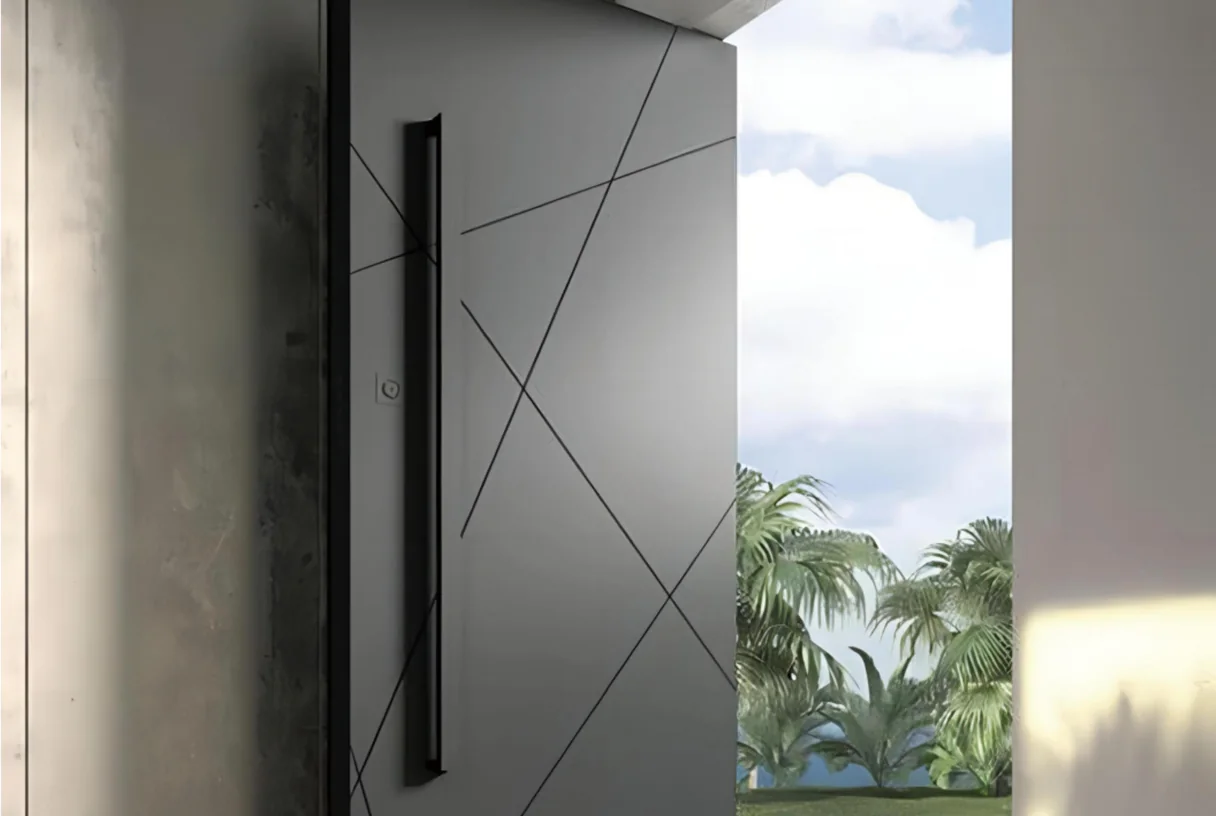

Yingfei Offset-Hinge Cast-Aluminium Entrance Door
An offset pivot turns the leaf clear of the reveal, paired with a sculpted cast-aluminium art face. The complete configuration, glass options and finish list are on the door series page.
- Operation
- Offset-hinge swing, pivot inboard of the leaf edge
- Opening angle (catalogue)
- Large angle, close to 180 degrees, opening both ways
- Space
- Core areas inside and outside the opening stay clear
- Leaf face
- Cast-aluminium art face · marble face · slim glazing
- Frame
- Aluminium, per the catalogue scenes
- Structural build
- Aviation-grade aluminium plate · 1.0 mm steel plate · B1 flame-retardant board · PA66 insulation strip · automotive-grade sealing strip
- Durability (catalogue)
- Balanced pivot load, reduced sag and less hardware wear
- Hardware
- L8 face lock (palmar-vein option) · N6 fingerprint lock · F3 to F6 embedded locks
- Finishes
- Confirmed against the catalogue and samples on request
Engineering
Offset pivot, clear floorThe leaf turns on an axis inboard of its edge, so the core areas inside and outside the opening stay free and a tight plan keeps its floor in use.
Nearly 180 degrees, both waysThe catalogue gives the leaf a large opening angle close to 180 degrees and movement in both directions, so bulky items and several people pass without a hinge limit.
Cast-aluminium art faceSeveral leaves carry a sculpted cast-aluminium face set into the leaf, drawn in bronze, stone and dark tones, with the pivot hardware kept out of the closed face.
Balanced load, longer lifeThe catalogue says the pivot spreads and balances the load, which reduces sag and deformation of the leaf and cuts wear on the hardware parts.
What Australian spec writers check
The Australian regime is built on testing, not on brand claims. AS/NZS 1170.2 sets the regional wind-load classification, AS 2047 defines how window and door assemblies are tested against wind load, and AS 1288 classifies the glazing itself. A cyclone-rated specification must therefore state the zone class, the tested configuration and the glazing classification for the exact module size.
Adam Alux does not hold AS 2047 test certificates. Engineering against your zone and module schedule is confirmed at quotation, and a finished test window or door can be produced before the production run.
Shipping to Australia
Modules travel to the major Australian ports in export-standard containers, packed upright with edge protection. The container count for your schedule depends on frame depth and glass build-up, so the loading plan comes with the quotation.
Transit and port handling are confirmed per shipment. For coastal projects, the fluorocarbon and anodised finish lines are the standard shortlist against salt-air exposure.
Projects in Australia
villa · day scene
House with deep eave, timber screens
A wide overhanging roof shades sliding doors that open the living area onto a timber deck.
villa · day scene
Coastal house, full-height glazing
A raised concrete deck and full-height glazing turn the elevation toward the water, under a deep shaded veranda.
apartment · day scene
Apartments, angled sunshades
Pale render with dark metal balcony bands and angled sunshades over floor-to-ceiling framed windows.
FAQ
Frequently asked
Do your aluminium windows and doors ship to Australia?
Yes. Modules ship to the major Australian ports in export-standard containers, with the loading plan for your schedule included in the quotation.
How do you handle cyclone zone specifications?
The zone class and the module schedule drive the specification. Engineering and glazing classification are confirmed at quotation against the AS 2047 and AS 1288 requirements, with a test unit available before production.
What is the Yingfei offset-hinge door?
It is the offset-hinge entrance door of the AURORA range, printed on catalogue pages 075 to 084. The leaf turns on a pivot set inboard of its edge, which the catalogue gives as the answer for narrow spaces and small apartments.
How is it different from a standard swing door?
The pivot sits inboard of the leaf edge and the leaf opens through a large angle, close to 180 degrees, in both directions, so the core areas inside and outside the opening stay clear. A standard side hinge sweeps the leaf across that floor.
Keep going
Series, market and range
Send your opening schedule
Series, glazing and finish come back as one quotation for Australia, with the full dimensional pack on PDF and CAD on request.
